Helpful Energy Comparisons, Anyone? A Guide to Measuring Energy

Earlier this week, when I was writing about the potential for generating electricity from tidal power, something stood out to me. I don’t have a reliable resource for understanding energy quantities. I mean, how much is a terawatt — and don’t just tell me it’s 1,000 gigawatts, because that doesn’t help. Or, if I see that Michigan is installing 200 megawatts of wind power, it’s not immediately obvious (at least to me) whether that will satisfy a little or a lot of the state’s electricity needs.

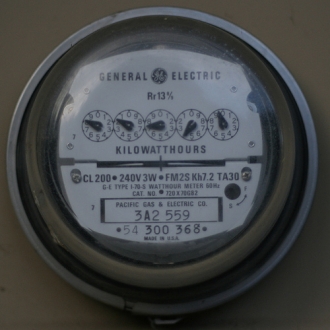

Credit: Greg Hirson/flick

Here at Climate in Context, the blog posts typically cover recent climate change news. But I also think it’s a perfect place to experiment with some useful energy comparisons, for everyone’s benefit. Today, I’m keeping things really simple, using easy-to-understand examples. Next week, I’ll delve into some more surprising comparisons. I’d also love to hear your ideas on some effective ways to explain different amounts of energy. Eventually, we’ll choose the most compelling comparisons to develop a graphic — exactly the kind that I could have used the other day.

A note before I go any further: Units of power (like a watt) represent the rate at which energy is used or generated. When you want to know how much electricity an appliance has used, however, you need to consider how long it was running. If you’re interested in the actual calculations, I’ve included them at the bottom of the post.

Watts:

One watt (W) is actually pretty small, so let’s consider an average 100 W incandescent lightbulb instead. A 100 W bulb that burns for a year without being turned off consumes the same amount of electricity as can be generated by 700 pounds of coal.1 That’s as much coal as would fill three giant suitcases. What about one compact fluorescent bulb, with a 27 W rating? That’ll burn more like a small carry-on suitcase of coal.

Kilowatts:

By the time you add up all the power going into lights and appliances in your home, you get into the realm of kilowatts (kW). In fact, some appliances actually use kW of power each (like an electric hot water heater, for example, that might use 2 or 3 kW of power). Combining everything in the typical home, the average American household consumes as much electricity as can be generated from about 4.7 tons of coal2 — about the same weight as an adult elephant.

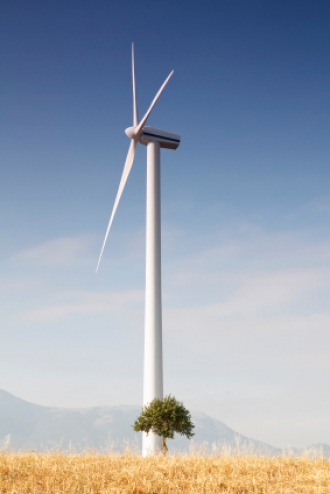

Credit: iStock

Megawatts:

Megawatts (MW), as its name implies, is much a larger amount of energy: now we’re talking about millions of watts, which translates into power for hundreds, and even thousands, of homes. For example, wind turbines typically generate 2-3 MW of power each — or at least, they are capable of producing that kind of power when the wind is really blowing. Of course, the wind doesn’t always blow, so as a rule of thumb, a typical 2 MW wind turbine can provide electricity for about 400 homes.3

Gigawatts:

By the time you get up to gigawatt (GW) amounts of energy, you can think in terms of large power plants. For example, Hoover Dam is a 2 GW facility, but how much electricity it generates depends on how much water is flowing through the dam. In 1984, when the water level at Lake Mead was at its highest point ever, Hoover Dam was providing electricity to over 700,000 homes. But since 1999, water levels have been much lower, and now the dam only produces enough electricity for about 350,000 homes.4

Coal and nuclear power plants also typically generate gigawatts of power. The Indian Point nuclear power plant, located just outside of New York City, has the same power rating as Hoover Dam (Indian Point has two 1 GW reactors). But electricity is generated more efficiently at a nuclear power plant, so Indian Point can serve nearly 1.4 million homes. And at more than 3.5 GW, Plant Bowen in Georgia, the largest coal power plant in the U.S., can provide electricity to about 1.9 million homes.

Terawatts:

Terawatts (TW) are millions of megawatts, and this is a helpful unit when you’re talking about the rate at which humans are using energy worldwide. In 2008, for example, humans used energy (this includes all types of energy, not just electricity) at an average rate of about 16.5 TW of power — the U.S. consumed about one fifth of that, at 3.3 TW.


Calculations:

A 100 W bulb, if burned continuously for a year (or 8,760 hours, in other words) will use 876,000 Watt-hours (100 W x 8760 h), which can also be written as 876 kW-hours.

1) Coal power calculations: Each ton of coal can generate about 2,500 kW-hours of usable electricity — that’s an average, however, because some types of coal pack more punch, making more electricity, and some generate less. To produce enough electricity for a 100 W bulb lit for the entire year, you would need 0.35 tons of coal (876 kW-h divided by 2500 kW-hours/ton). And 0.35 tons is the same at 700 lbs.

2) Home energy calculations: According to the U.S. Energy Information Agency (EIA), in 2005 the average American household consumed 11,476 kW-hours of electricity each year. From here, you can calculate the amount of coal needed to generate the same amount of electricity, according to the calculations in (1).

3) Wind energy calculations: A wind turbine rating of 2 MW indicates the maximum amount of power it can produce. But when the wind isn’t blowing strongly (or at all), much less power is produced. Over the course of a year, you can often assume that a wind turbine will produce only about 25 percent as much electricity as it would if the wind were blowing strong enough to match that power output. This 25 percent value is the estimate the EIA uses for land-based wind turbines.

If a 2 MW turbine were to run all year at maximum power, it would produce (2 MW x 8760 hours) 17,520 MW-hours (or 17,520,000 kW-hours). But if we assume it only produces a quarter of that, it would be 4,380,000 kW-hours). Each house uses 11,500 kW-hours, so about 380 homes could get electricity from one turbine.

4) According to the U.S. Bureau of Reclamation, Hoover Dam generates an average of 4.2 billion kW-hours each year. Again, if each home consumes 11,500 kW-hours of electricity, then the dam is producing enough electricity for about 350,000 homes.

« Climate in Context

Comments

By Ashvin Shah (Scarsdale, NY 10583)
on July 21st, 2011

In order to help the general public become more aware of and involved in reducing their own carbon footprints as they are for reducing their own diet calories, scientists and engineers need to put forward simple units for energy and power that the general public can relate to and count their energy consumption.  The British scientist David Mackay who was appointed in October 2009 Chief Scientific Advisor to the UK Department of Energy and Climate Change has suggested “a single set of personal units that everyone can relate to” in his book Sustainable Energy - Without the Hot Air (2009, UIT CAmbridge Ltd).

For the unit of energy he chooses the kilowatt-hour (kWh) that appears in everyone’s electricity bill.  For the unit of power he chooses kilo-watt hour/day (kWh/d) as a “nice human-sized unit” often used in some electricity bills showing daily energy consumption in kWh/d,  One kWh/d “is roughly the power you could get from one human servant” but a scientist I know prefers to call “servant” as a “slave” or a count of how many slaves worked for you today!

These two units would be used for all energy forms - electricity, heat, mechanical, and chemical, not withstanding different costs associated with each energy form.

Something worth considering for Climate Central’s work.



Reply to this comment

By larry (google, earth)
on November 7th, 2011

check to see if your metric for kwh per unit coal is end-use electricity—that is, after transmission and conversion losses that are at least 10%.

Reply to this comment

By Joe (Ripon, CA 95366)
on October 9th, 2012

In my personal research in this subject, it has become apparent that while a plant’s capacity may be expressed as XXX megawatts per hour or per year, this is usually the peak production rate per hour or per year.  In practical terms however, the plant won’t be able to operate at peak levels 24/7 all year long.  Therefore, in estimating the plant’s ability to serve a certain number of homes, some ratio of average production level to maximum capacity level needs to be applied, which can range from 30% to 75%.  Hope this helps.

Reply to this comment

By pocketcalculator
on November 20th, 2013

4,380,000 / 11,500 = 380, not 380,000

Reply to this comment

By Alyson (Climate Central)
on November 21st, 2013

Pocketcalculator:

Thanks for catching that calculation error. We had the correct number in the text up above (in the megawatts paragraph) but had the error down in point (3) of the calculations. We’ve corrected it so it now reflects 380 homes.

Alyson

Reply to this comment
